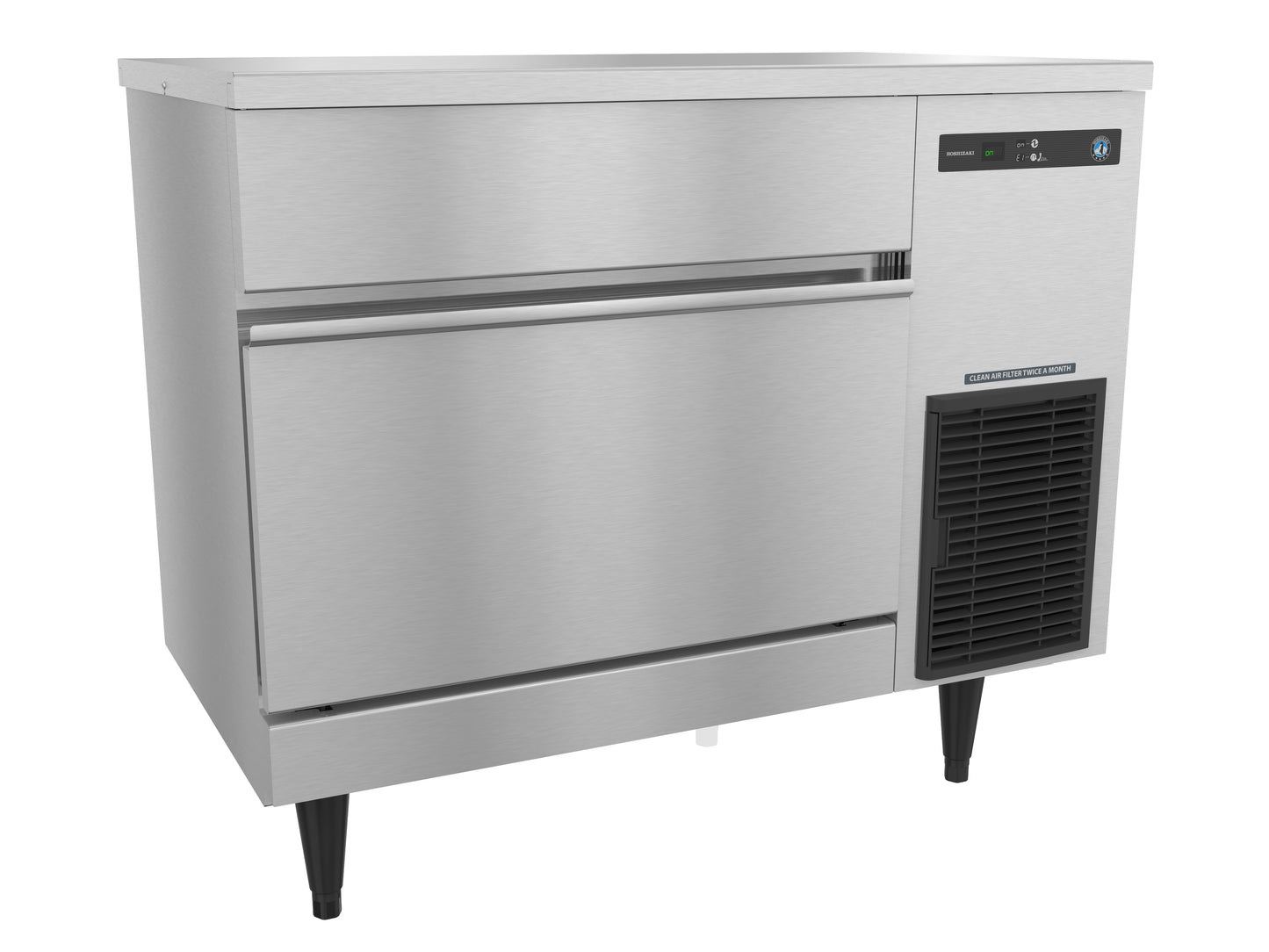

The IM-200BAB is capable of producing approximately 186 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Self Contained, Built in Storage Bin icemaker features Up to 75 lbs of built-in storage capacity (2.5ft3)*. The IM-200BAB is a Single phase, 115v/60/1, 5' 7/8" ft cord with NEMA 5-15 plug and uses R-404A refrigerant (10.6 oz. / 300 g). Min Clearance: 0" on top, 2" on left side, 6" on right side, 2" rear. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice. IM-200BAC.






• Amps : 7.6 A
• Depth : 23.625
• Height : 33.5
• Length : 39.5
• Shipping Depth : 27.625
• Shipping Height : 34.4375
• Shipping Length : 43.7
• Shipping Weight : 203
• Volts : 115v/60/1
